1.8m Width Plain Weaving Wire Mesh Manufacturing Machine ISO-9001 Approval

Raoyang jinglian machinery manufacturing co. LTD
Contact Now

1.8m Width Plain Weaving Wire Mesh Manufacturing Machine ISO-9001 Approval

  • 1
  • 2

Brand Name : Jinglian

Model Number : JWJ-05

Certification : As Requirement

Place of Origin : China

MOQ : 1 set

Price : 2000-10000 USD

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 20 days

Packaging Details : As requirements

Color : As Requirements

Weight : 2 tons

Company : Manufacter

Wire Diameter : 0.35mm

Warranty : 1 year

Contact Now

Blue 1.8m Width Fully-automatic Steel Wire Mesh Machine For Plain Weaving Wire Mesh





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable  machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.

The main components and specifications

In the deirenction of the technical  flow for weaving , it mainly consists of  take-up units,weft beating-up nuitm opening unit, and warp feeding unit etc

Take-up unit

a model: nonstop active take-up and gear-on-worm speed change

b, Weft density range: mesh side length for a square messh net: 0.45-0.036mm, Microgroove net: 2600 nesh/inch

c, Take-up roller diameter and effetive length: 192*1500mm, 192*1800mm



The type of ZWJ-1300B weaving machine is an improvement based on type 1300A weaving machine to satisfy the user's requirements,as some of the parts are rebuilted,Type B machine is especially improved in the rigidity when comparing with typeA machinem the ths it is more suitbale for weaving with wires in larger diameter.



The Appllication of the Wire Mesh Weaving Machine



KING Gang Wire mesh



Round Filter wire mesh

Square Wire mesh filter

Plain weavig wire mesh

Dutch  wire mesh

Microgroove net

pattered weaving mesh

Bead weaving wire mesh





The Technical Parameters of the Wire Mesh Weaving Machine



Item Machine Type Unit Reference Value
  ZWJ-1300A mm 1300
  ZWJ-1300B mm 1300
  ZWJ-1600Q mm 1600
Density ZWJ-1300A mm 0.45-0.036
  ZWJ-1300B mm 0.45-0.036
  ZWJ-1600Q mm

-2600

Crankshaft Rotating Speed ZWJ-1300A r/min 65-90
  ZWJ-1300B r/min 60
External dimension ZWJ-1300A mm 2600*2800*1200

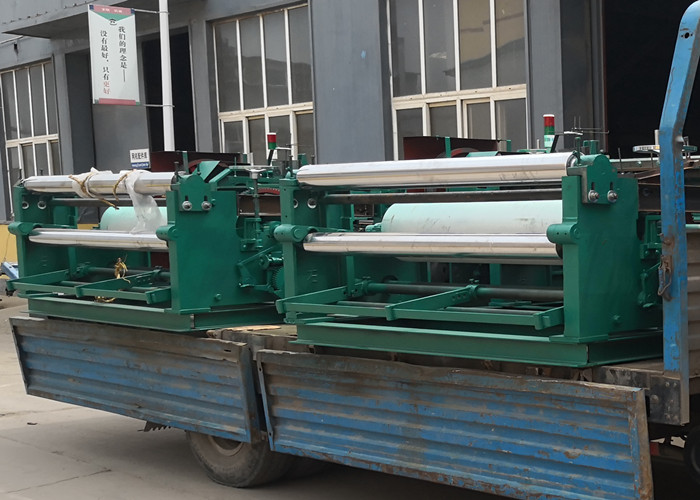

The Picture of the Wire Mesh Weaving Machine



1.8m Width Plain Weaving Wire Mesh Manufacturing Machine ISO-9001 Approval
